Lithium Ion Polymer Battery Cell 502035 3.7v 300mAh 350mAh 1.11wh Rechargeable Batteries
Main parameters:
Product model: LP502035
Nominal capacity: 300mAh
Product size: 5.0x20x35mm
Rated voltage: 3.7V
Charging voltage: 4.2V
Charging temperature: 0 ° C~45 ° C
Discharge temperature: -20 ° C~+60 ° C
Storage temperature: -20 ° C~+35 ° C
Charging current: Standard charging: 0.5C, fast charging: 1.0C
Standard charging method: Charge to 4.25V at 0.5C CC (constant current),
Charge again with CV (constant voltage 4.2V) until the charging current is ≤ 0.05C
Maximum charging current: 1C
Maximum discharge current: 1C
Protection IC parameters: overcharge protection voltage 4.20V ± 0.05V
Over discharge protection voltage 2.7V ± 0.1V
Product features:
1. High energy density
The weight of lithium polymer batteries is half that of nickel cadmium or nickel hydrogen batteries of the same capacity, and the volume is 40-50% that of nickel cadmium and 20-30% that of nickel hydrogen.
2. High voltage
The operating voltage of a single lithium polymer battery is 3.7V (average), which is equivalent to three nickel cadmium or nickel hydrogen batteries connected in series.
3. Good safety performance
The outer packaging is aluminum-plastic packaging, which is different from the metal shell of liquid lithium batteries. Due to the use of flexible packaging technology, internal quality hazards can be immediately displayed through deformation of the outer packaging. Once a safety hazard occurs, it will not explode but only swell.
4. Long cycle life
Under normal conditions, the charge and discharge cycle of lithium polymer batteries can exceed 500 times.
5. No pollution
Lithium polymer batteries do not contain harmful metal substances such as cadmium, lead, mercury, etc.
6. No memory effect
The memory effect refers to the phenomenon in which the capacity of nickel cadmium batteries decreases during the charging and discharging cycles. Lithium polymer batteries do not exhibit this effect.
7. Fast charging
Using a constant current and constant voltage charger with a rated voltage of 4.2V can fully charge lithium polymer batteries within one to two hours.
8. Complete range of models
Complete range of models, wide capacity and size range, can be designed according to customer needs, with a single thickness of 0.8-10mm and a capacity of 40mAh~20Ah.
Application areas:
Bluetooth earphones, smart wearables, GPS navigation devices, POS machines, power banks, learning devices, tablets, car navigation, MP3,MP4,MP5, Card insertion speaker, wireless mouse, Xiaomi display screen PSP built-in battery, Apple peripheral power supply, tablet computer, mobile DVD, laptop battery, wireless monitoring device, medical equipment, various instruments and meters, LED lamps, traffic signs, portable small appliances, various DIY instruments and meters, metal detectors, and other digital battery products.

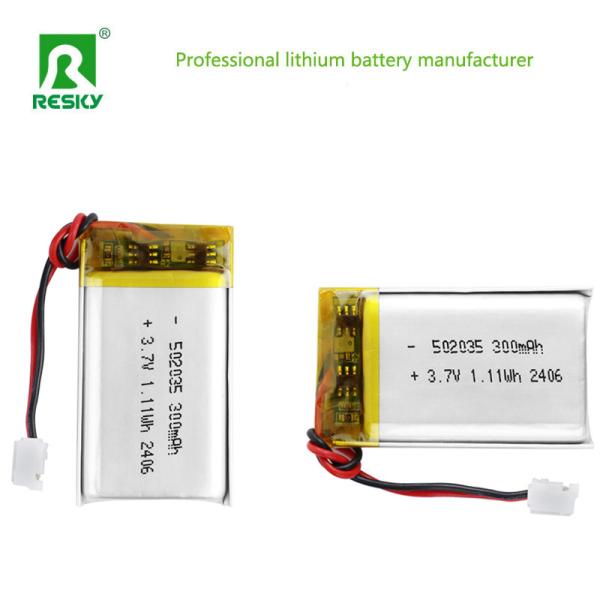

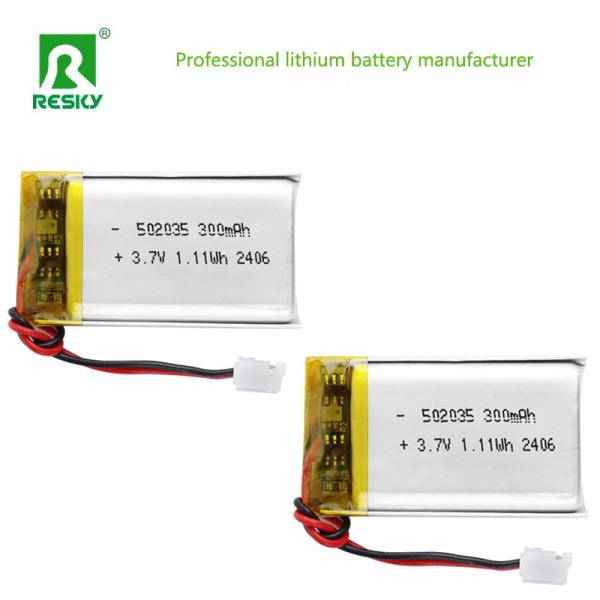

Product Pictures:
